DOBOT palletizing solution is an integrated smart system. Therefore, it maximizes your production efficiency. Furthermore, it combines CR series robot arms with intuitive software. As a result, this powerful hardware minimizes integration difficulty. Additionally, it reduces cycle time to perfectly fit your industrial needs.

The robot solution ensures a simple and fast installation right out of the box. Specifically, it provides a cost-effective palletizer. Most importantly, zero programming skills are necessary for setup. For example, it easily applies to multiple industries like healthcare, chemicals, food, and logistics.

Distributor Dobot Certificate

DOBOT Plug and Play

Smart Palletizing Solution REDUCE ROBOT INTEGRATION DIFFICULTY AND INVESTMENT COSTS

Highlights of the Process Package

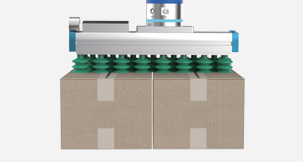

Efficient Dual-suction Mode

It perfectly adapts to faster scenarios. Specifically, it supports picking one or two boxes simultaneously. Therefore, the dual-suction mode easily boosts efficiency. As a result, palletizing efficiency increases by up to 62.5%. Ultimately, you achieve easy and efficient palletizing.

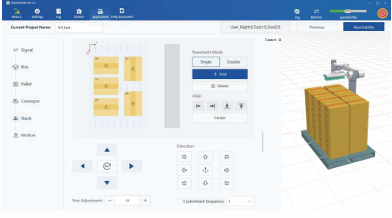

Visual Configuration
The process package has a 3D display function that shows boxes, pallets, stack types, and layers in real-time 3D graphics, simplifying the configura tion process.

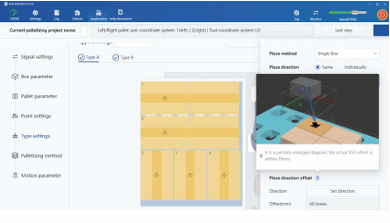

Supports Configuration of Box
Transition Point and Target Point

You can easily set the palletizing position and transition point. Therefore, it minimizes the effect of box size differences. Furthermore, it eliminates extra space between boxes. Consequently, the system perfectly compacts them. Notably, independent settings make your debugging much easier.

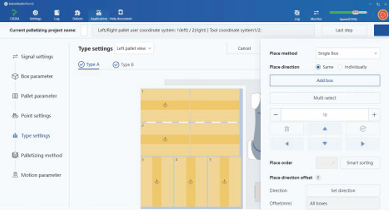

Flexible Stack Configuration
The system allows for the customization of box palletizing order and entry directions for 8 differ ent types of boxes. This feature is particularly useful in complex stack scenarios where specific arrangements are required.

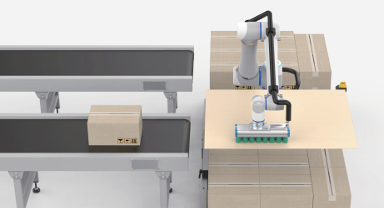

Supports Picking and Placing Partitions
In response to the needs of the food and beverage industries, picking and placing partitions for pallet izing is supported by the process package, which makes the stack more stable. This feature is simple to set up. Just select the partition picking point, transition point, and placing point in three steps.

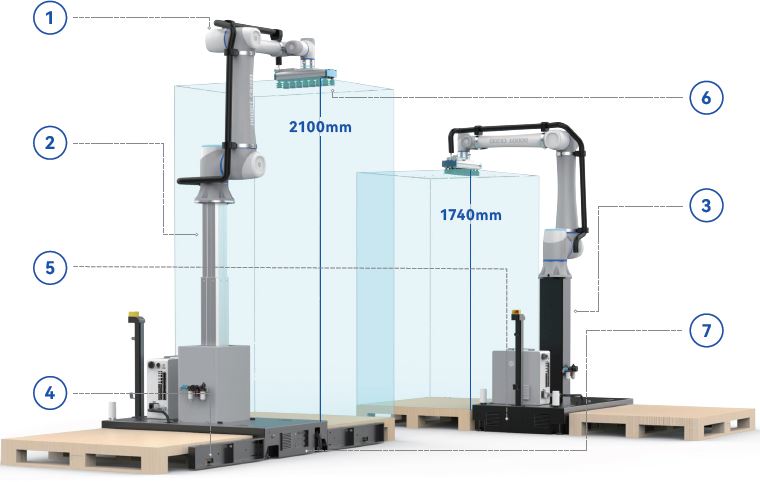

Product Snapshot

1. Dobot CR20A Cobot:
This powerful device manages palletizing tasks effectively. Specifically, it boasts an impressive 20 kg maximum payload capacity. Additionally, it offers a working range of up to 1,700 mm. As a result, it provides a much wider coverage area.

2. Lifting Axis: The height of the column has the potential to increase by up to 900 mm, while the maximum height for palletizing can reach 2,100 mm.
3.Fixed Column: The square tube used for welding is 8 mm thick and possesses a stable structure. It is designed with a fixed height of 1,150 mm and can reach a maximum palletizing height of 1,740 mm.
4.Pallet Detection and Positioning Device: The pallet detection and positioning device serves the function of identifying the existence of a pallet at the workstation and verifying that it has been appropriately positioned at the specified location. Its primary role is to detect whether a pallet has been installed and to ensure its precise deployment.

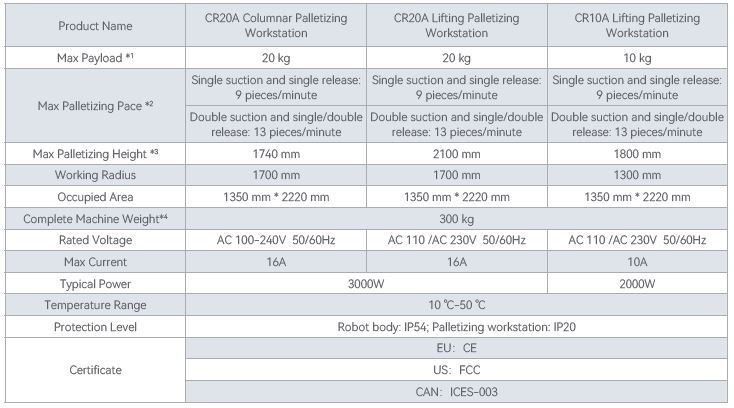

Product Specifications

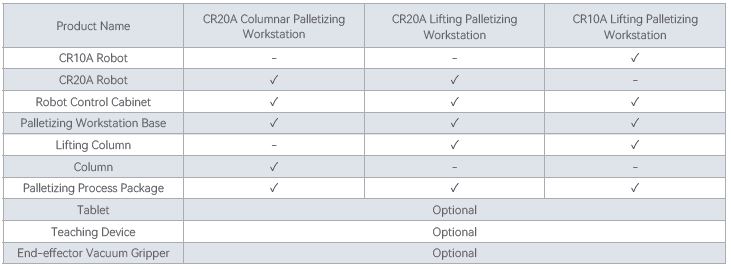

Configuration List
5.Standard Palletizing Base: The palletizing base is equipped with a comprehensive electrical control and communication system, ensuring seamless integration. Its modular hardware design simplifies the construction process, allow ing for greater ease and efficiency. Addi tionally, the inclusion of a reserved forklift hole position enhances convenience during production line changes.
6.End-effector Vacuum Suction Tools:Optional as needed Configuration 1: Schmalz offers vacuum suction tools that can handle payloads of up to 20 kg and cover a large surface area. Configuration 2: The product allows for unique customization options and features a dual-suction end-effector.
7.External Terminal Panel: With the inclusion of terminal fast-on functional ity, the panel offers a convenient and rapid means of connecting to the client control signal. Moreover, the presence of reserved I/O signal interfaces simplifies the process of integrating external devices or systems, allowing for seamless expansion and enhanced versatility.

DOBOT PLUG AND PLAY CATALOG

Discover the complete details of the DOBOT Plug and Play Smart Palletizing Solution. Click the button below to view or download the PDF catalog.
