Power Roller Conveyor from Siam Smart Solutions

Power Roller Solutions

High-performance motorized rollers engineered for seamless warehouse and assembly line automation.

Specifically, our power roller conveyor systems utilize advanced BLDC motorized roller technology to prevent package collisions. **Consequently**, this smart ZPA setup ensures maximum logistics efficiency while reducing energy consumption.

Next-Gen Motorized Roller Solutions

Specifically, our power roller conveyor systems utilize advanced BLDC motorized roller technology to prevent package collisions.

Consequently, this smart ZPA setup ensures maximum logistics efficiency while reducing energy consumption.

Standard Power Roller

Standard Power Roller

  • Power: 24V DC
  • Roller Diameter: Ø48.3 / Ø50 mm
  • Tube Thickness: 1.7 mm
  • Tube Material: STKM12 Carbon Steel / SUS304 Stainless Steel
  • Outer Tube: Galvanized Zinc or Stainless Steel Cladding
  • Shaft Type: Hexagon
  • Roller Length: 400–1000 mm
Request a Quote
Low Speed Power Roller

Low Speed Power Roller

  • Power: 24V DC
  • Roller Diameter: Ø48.3 mm
  • Tube Thickness: 1.7 mm
  • Tube Material: STKM12
  • Rated Velocity: 18 m/min
  • Rated Output: 20 W
  • Tube Length: 370–2000 mm
Request a Quote
High Torque Power Roller

High Torque Power Roller

  • Power: 24V DC
  • Roller Diameter: Ø48.3 mm
  • Tube Thickness: 1.7 mm
  • Tube Material: STKM12
  • Rated Velocity: 60 m/min
  • Rated Output: 28 W
  • Tube Length: 380–2000 mm
Request a Quote
High Speed Power Roller

High Speed Power Roller

  • Power: 24V DC
  • Roller Diameter: Ø48.3 mm
  • Tube Thickness: 1.7 mm
  • Tube Material: STKM12
  • Rated Velocity: 100 m/min
  • Rated Output: 28 W
  • Tube Length: 360–2000 mm
Request a Quote
Power Roller With Brake

Power Roller With Brake

  • Power: 24V DC
  • Roller Diameter: Ø50.0 mm
  • Tube Thickness: 1.5 mm
  • Tube Material: STKM12 / SUS304
  • Outer Tube: Stainless Steel Cladding
  • Shaft Type: Hexagon
  • Roller Length: 400–1000 mm
Request a Quote
PU Belt / O-ring

PU Belt / O-ring

  • Application: For transmission system with grooves
  • Pitch: 50 / 75 / 100
  • Origin: Made in U.S.A
Request a Quote
Idle Roller

Idle Roller

  • Type: Non-driven Carrier Roller (Free Roller)
  • Roller Diameter: Ø48.3 / Ø50.0 mm
  • Tube Material: STKM12 Carbon Steel / SUS304
  • Drive Method: Driven by Power Roller via O-Belt / PU Belt
  • Shaft Type: Hexagon / Spring-loaded
  • Roller Length: 300–2000 mm
Request a Quote
Patent Fixture

Patent Fixture

  • Feature: Exclusive world patent fixture
  • Function: Fastens all 6 surfaces of the hexagonal axle
  • Advantage: Replaces conventional 2–4 screw tighten accessories
Request a Quote
WWL Intelligent Control Card

WWL Intelligent Control Card

  • Control Mode: Built-in or External PLC Logic
  • Speed & Direction: 24 Switches for precise control
  • Signal Output: Directly driving external relay or PLC signals
  • Safety: Built-in self-protect functions
Request a Quote

What is ZPA? (Zero Pressure Accumulation)

The ZPA mode is an innovative technology in the modern logistics industry. Through detection from photo eye sensors and the intelligent control card, this mode accurately ensures the automatic transfer of loads, preventing collisions and damage during transfer.

▶ Watch ZPA Demo Video

⚙️ How It Works at the Conveyor Line

  • Zone Stopping: When there is a load in the downstream zone, packages automatically stop in the current zone.
  • Auto Transfer: When the downstream zone clears, it automatically starts running to transfer packages to the next zone.
  • Zero Collision: Ensures zero pressure accumulation, meaning packages will not collide or get damaged.

💡 Key Advantages & Efficiency

  • No Risk of Jams: Safely handles packages of varied sizes and weights without the risk of jamming.
  • Power Saving: Only the active passing zone is running. The rest of the zones are on sleep mode, making it highly energy efficient.
  • Intelligent Control: WWL's Control Card maximizes the Brushless DC motor's performance (1 control card per zone).

Why ZPA is Essential for Modern Conveyors

Without ZPA Collision

❌ Without ZPA (เสี่ยงชนกัน)

Running at a constant speed without ZPA is like driving without any brakes. It eventually slows down, but at the expense of another car's bumper.

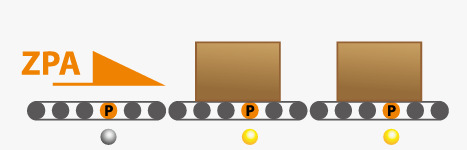

ZPA No Jams

✅ ZPA: No Jams (ของไม่ติดขัด)

No risk of jams with package of varied size and weight. The intelligent zones keep everything flowing smoothly.

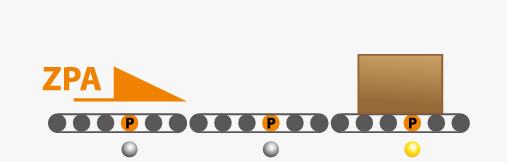

ZPA Energy Saving

⚡ ZPA: Power Saving (ประหยัดไฟ)

Only passing zone is running. The rest of zones are on sleep mode which is power saving and highly efficient.
